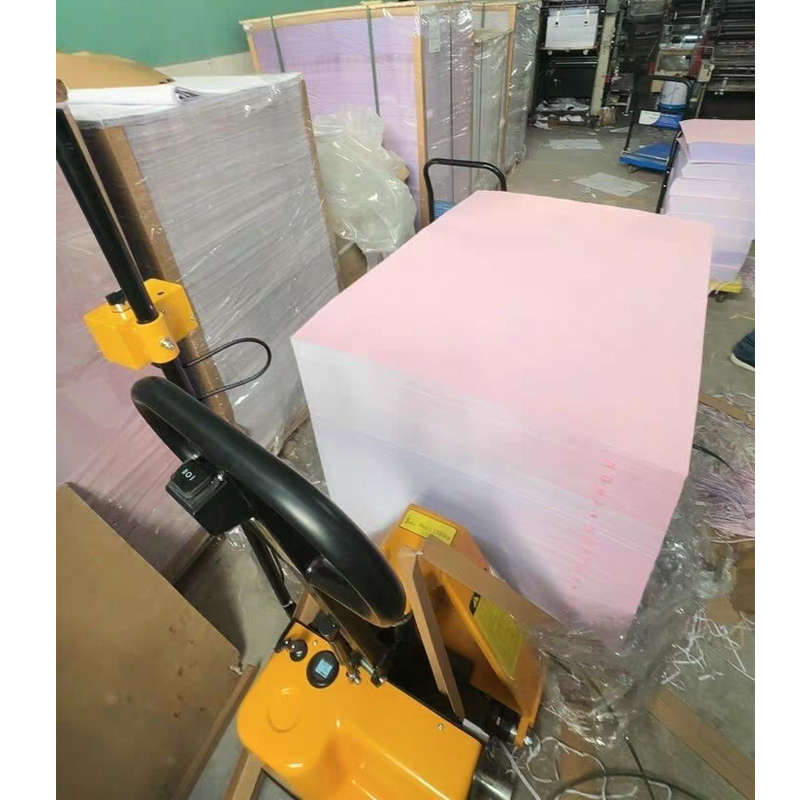

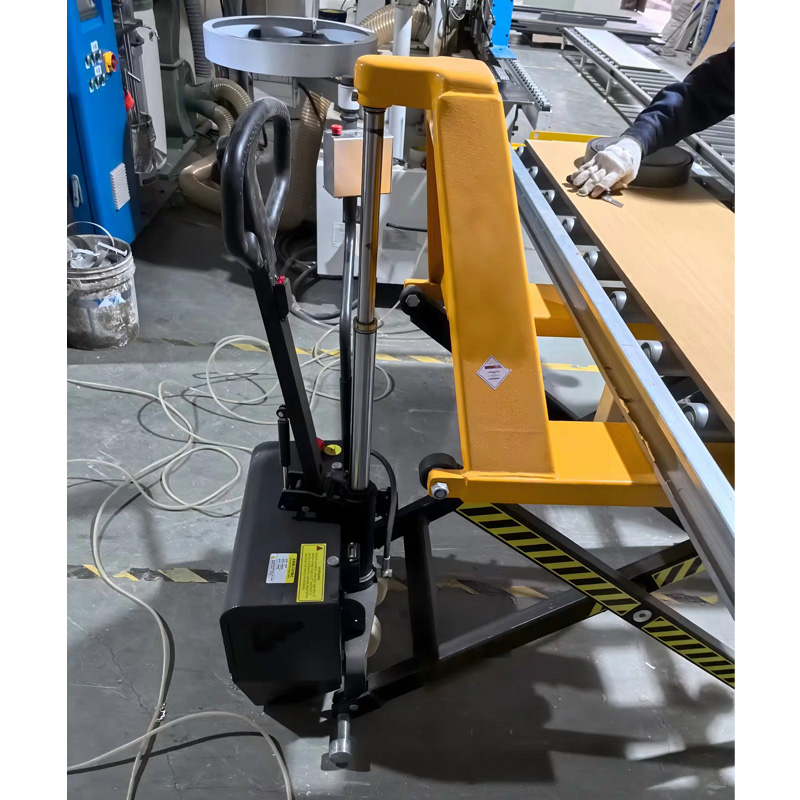

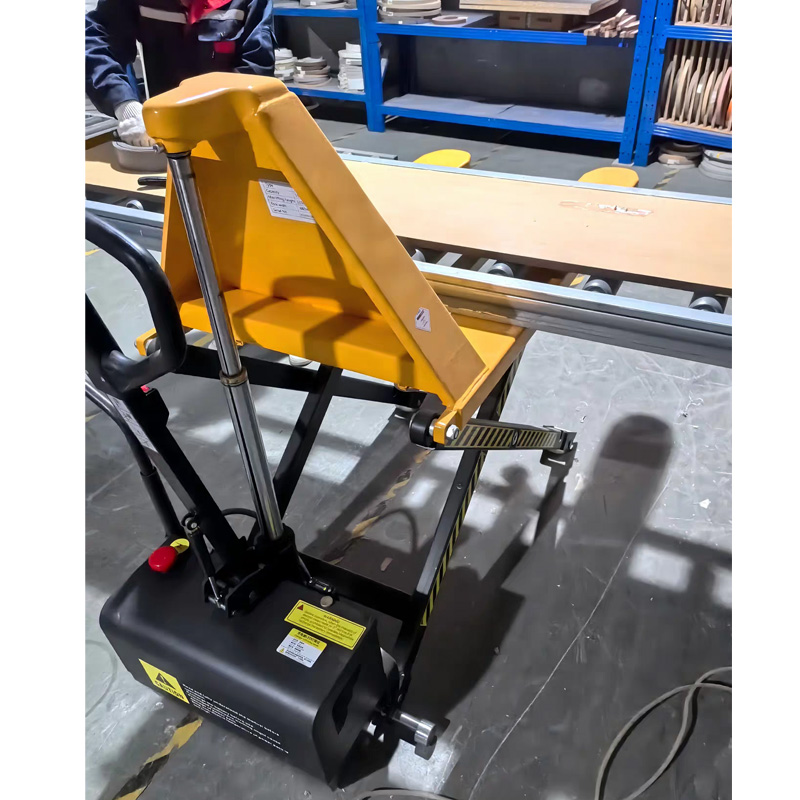

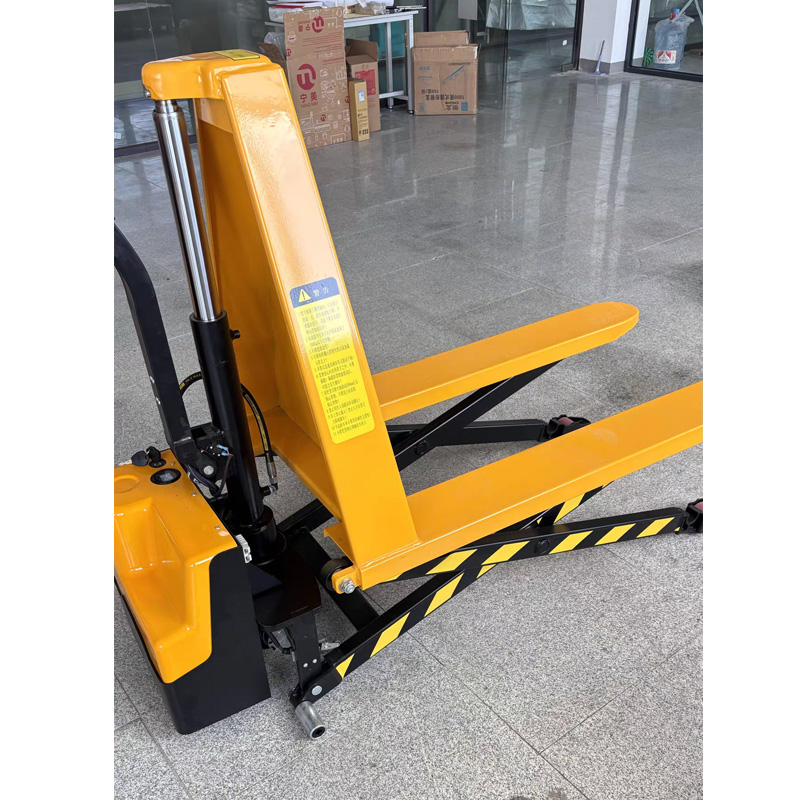

High-lift pallet truck CBY.HL,All electric high lift transport vehicle
Product Overview
All electric high lift transport vehicle Product Advantages
This product combines the functions of a standard hydraulic pallet truck and a lift platform, making it suitable for daily tasks involving the handling and transportation of heavy loads.
The electric model is equipped with a dual‑stage hydraulic cylinder; when the fork height reaches 420 mm, the stabilizing device automatically lowers to the ground, ensuring vehicle stability and braking performance.
When the lifting height is less than 300 mm, it can be used as a pallet truck.
All electric high lift transport vehicle Optional configuration
Stainless steel
Electric lifting
Manual double-acting piston cylinder
Electric single-acting cylinder
Electric double-acting cylinder
Self-propelled electric hoist
Product Detailed Specification Sheet | |||||||||
Model number | Unit | CBY.HL1.0 | CBY.HL1.5 | CBY.EHL1.0 | CBY.EHL1.5 | ||||
Payload | kilogram | 1000 | 1500 | 1000 | 1500 | ||||
Operation Type | / | Manual | Electric | ||||||
Minimum/Maximum Fork Height | mm | / | / | 90/800 | 90/800 | ||||
Fork width | mm | 540 | 680 | 540 | 680 | 540 | 680 | 540 | 680 |
Fork length | mm | 1150 | 1150 | ||||||
Low release altitude | mm | 85 | 12 | ||||||
Lifting height | mm | 800 | 800 | ||||||
Load wheel | / | Nylon/Polyurethane | Nylon/Polyurethane | ||||||
Steering wheel | / | Nylon/Polyurethane | Nylon/Polyurethane | ||||||
Voltage | V | / | 12 | ||||||
Charging input/output voltage | V | / | 220-240/12 | ||||||
Net weight | k g | 120 | 125 | 130 | 135 | 158 | 163 | 183 | 188 |
All electric high lift transport vehicle Frequently Asked Questions
Is it electric?
Purchased: There are manual and electric options available. For more details, please consult customer service.
What is the height from the ground when it is laid flat?
Purchased: It's not very high from the ground, and it should be used on flat roads.
Q: Is there any assembly required?
Purchased: No
Q: What's its own weight?
Purchased: 2 tons
Q: Is it flexible to operate?
Purchased: No, it's quite easy to use
Q: Is the maximum lift height only 0.8? Is there no higher option?
Purchased: Yes
Q: Is there an option that can lift to 1 meter with a load capacity of only 1 ton?
Purchased: You should ask the seller. Mine works fine.
All electric high lift transport vehicle Customer reviews
User: Qinqin's Little Egg
This lift is truly top-notch in craftsmanship, the overall material is very sturdy and generously used. I tested the electric lift, it operates smoothly and has plenty of power. The most important thing is that it offers incredible value for money, it can almost be said to be the best value option on the entire platform. Later I had a detailed chat with the customer service and confirmed it's from the original manufacturer, so I placed my order with confidence. Next, I'll test the battery's durability. If there's no problem, I won't come back for a follow-up review. If I do come back for a follow-up review, that means there's an issue.
User: Zuo Yu Zhiting
This lifting truck is really good, the material is thick and stable, the lifting operation is very smooth, and the load capacity is sufficient. It saves a lot of effort when moving heavy boxes in the warehouse, it's more practical than I expected, recommended for purchase~
User: Anonymous Buyer
It's easy to use and very convenient, one truck can handle stacking and moving tasks
User: Sun's Little Star--τ
It really saves time and effort, moving things is much faster. It can lift directly to a level parallel to me, I don't have to worry about back pain anymore. And it can hold a lot of items at once.
User: Lin Lin
It really saves time and effort, moving things is much faster. It can also lift up, so I don't have to bend over, it's great!
