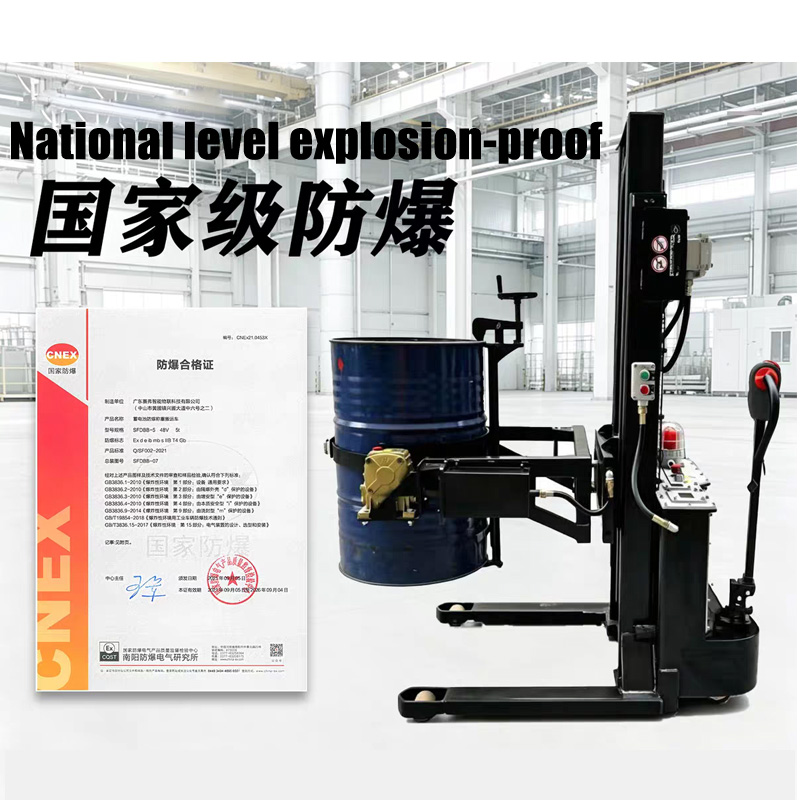

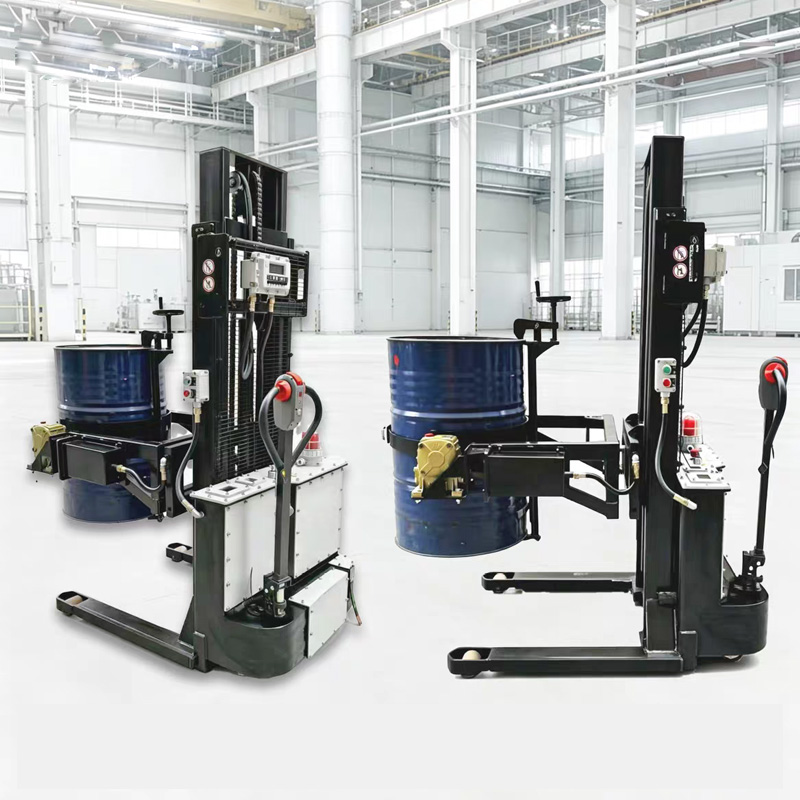

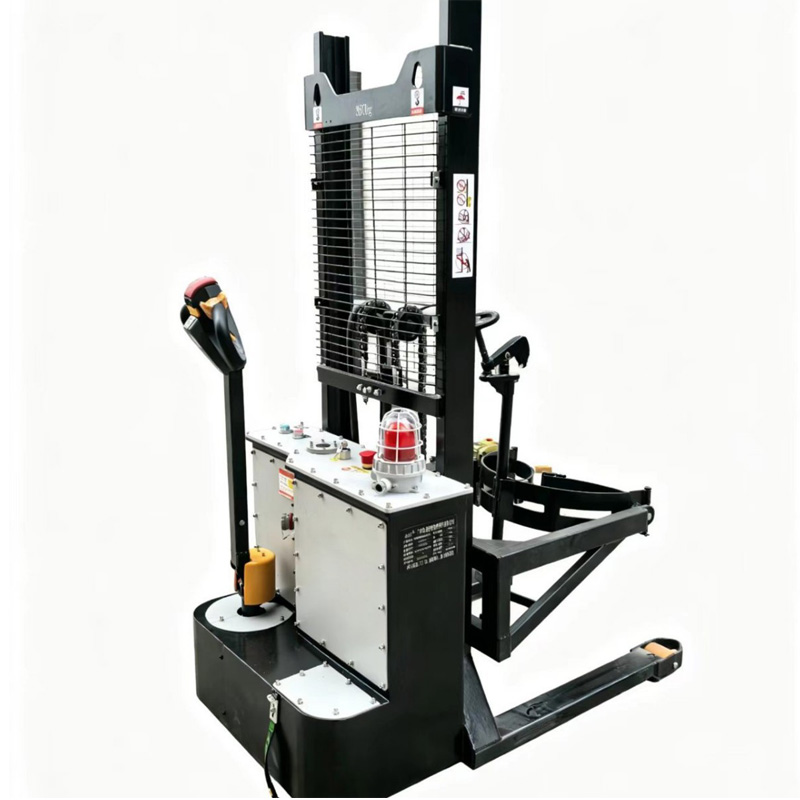

Explosion proof fully electric oil drum transport vehicle
Author:
Comparison:
Ordinary Drum Truck VS Explosion proof fully electric oil drum transport vehicle
Safety: The security of the regular model is average
Safety: Explosion-proof type is safer
Power: Manual operation, labor-consuming
Power: Electric operation, labor-saving
Applicable Scenarios: General warehousing
Applicable Scenarios: Flammable and explosive environments
Efficiency: General handling
Efficiency: Efficient lifting and clamping
Explosion proof fully electric oil drum transport vehicle Product parameters
Item Unit Details
Lifting Height h3(mm) 1600; 2000/2500/3000/3500
Driving Mode / Electric
Operation Mode / Pedestrian
Rated Load Capacity Q (kg) 1500
Load Center Distance c (mm) 600
Front Overhang x (mm) 375
Wheelbase y (mm) 1324
Self-weight (with battery)-for reference kg 450; 510/532/554/576
Closed Height of Mast h1(mm) 2030; 1530/1780/2030/2280
Free Lifting Height h2(mm) 90
Maximum Height of Mast h4(mm) 2030; 2530/3030/3530/4030
Minimum Height of Forks h13(mm) 90
Height of Operating Handle from Ground (Min/Max) h14(mm) 1000/1324
Overall Length of Vehicle l1(mm) 1860
Length of Fork Rear Part l2(mm) 710
Overall Width of Vehicle b1(mm) 805
Fork Size (Height/Width/Length) s/e/l(mm) 60/165/1150
Outer Width of Forks b3(mm) 680
Ground Clearance at Wheelbase Center m2(mm) 30
Aisle Width: 800×1200 Pallet (1200 placed along forks) Ast(mm) 2300
Aisle Width: 1000×1200 Pallet (1200 placed along forks) Ast(mm) 2375
Turning Radius Wa(mm) 1520
Wheel Chassis
Tire Type / Polyurethane
Drive Wheel Size Φ×w(mm) Φ210*70
Load Wheel Size Φ×w(mm) Φ80*70
Balance Wheel Size Φ×w(mm) Φ115*55
Quantity of Drive Wheels, Balance Wheels/Load Wheels (x = Drive Wheels) Φ×w(mm) 1X+1/2
Wheel Track, Drive End b10(mm) 545
Wheel Track, Load End b11(mm) 520
Performance
Maximum Travel Speed (Loaded/Unloaded) km/h 4.2/4.5
Maximum Lifting Speed (Loaded/Unloaded) mm/s 90/140
Maximum Lowering Speed (Loaded/Unloaded) mm/s 110/90
Maximum Climbing Ability (Loaded/Unloaded) % 4/7
Braking Mode / Electromagnetic Braking
Steering Type / Mechanical Steering
Motor and Battery
Drive Motor Power kw 1
Lifting Motor Power kw 2.2
Number of Batteries pc 2
Battery Voltage/Rated Capacity V/Ah 24/85
Battery Weight kg 48
Charger / 24V12A
