Scissor-type Electric Stacke
Author:

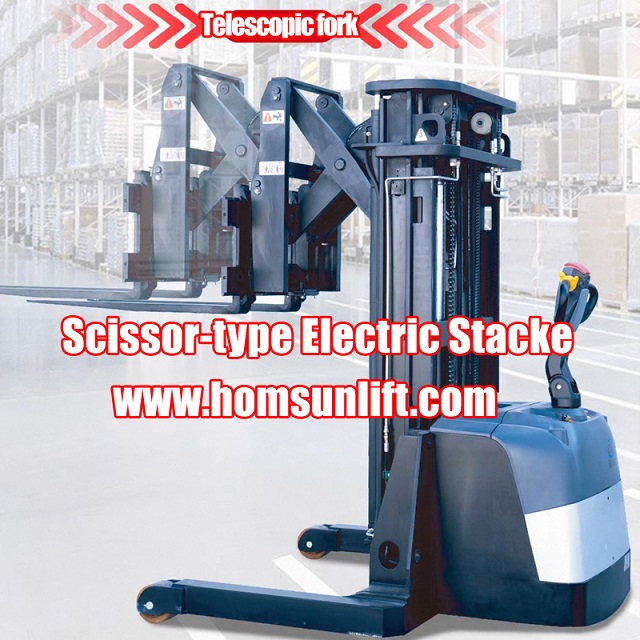

Scissor-type Electric Stacker
Equipped with electronic power steering system
*Powerful power · Brushless motor
*Retractable forks · Stable handling
*Proportional lifting · Precise control
*Low-voltage protection · Extended service life
- High-power Brushless Motor -
AC motor, no need to replace carbon brushes, more efficient and energy-saving
- Electronic Power Steering -
It is flexible and easy to operate no matter which direction you drive.
- Long-lasting Battery -
Equipped with a large-capacity battery, the power meter displays the remaining power in real time, making work more efficient
- Retractable Fork Design -
Scissor-type retractable forks, stable handling without impact on goods
- Proportional Fork Lifting -
Proportional lifting for precise control
- Low-voltage Protection -
Low-voltage protection design, extending service life
- CAN-BUS Wiring Harness -
With effective anti-interference ability, improving system operation stability
Scissor-type Electric Stacke Product parameters
Specifications Unit ：CQD20
Operation Type： Walk-behind
Rated Load Capacity kg： 2000
Load Center Distance mm ：600
Wheelbase mm ：1415
Self-weight kg ：2600
Wheel Material ：Polyurethane Wheel/PU
Drive Wheel mm ：φ250x70
Load-bearing Wheel mm ：φ150x100
Inner Width of Outriggers mm ：1200
Tilt Angle of Fork ° ：3.5/2.5
Minimum Height after Mast Lowering mm： 2100
Free Lift Height mm： 1520
Lift Height mm： 4500
Height when Fork is Lowered mm： 45
Overall Length mm ：2140
Vehicle Width mm ：1500
Fork Size mm： 35/100/1070
Outer Width of Fork mm： 815
Forward Reach Distance mm： 590
Minimum Ground Clearance of Vehicle Body mm ：56
Aisle Width for 800X1200 Pallet Placed Along Fork mm ：2200
Turning Radius mm： 1460
Overall Length (Excluding Fork) mm： 1670
Travel Speed (Loaded/Unloaded) mm/s ：3.5/4
Lift Speed (Loaded/Unloaded) mm/s： 100/200
Lowering Speed (Loaded/Unloaded) mm/s： 200/100
Maximum Climbing Gradient (Loaded/Unloaded) % ：6/10
Service Brake： Electromagnetic Brake(E/M)
Drive Motor Power KW： 2.2
Lift Motor Power KW： 4.5
Lithium Battery Voltage/Capacity V/Ah ：24V/200Ah
Noise Level at Driver's Ear dB(A) ：<70
